🎤 Product Description

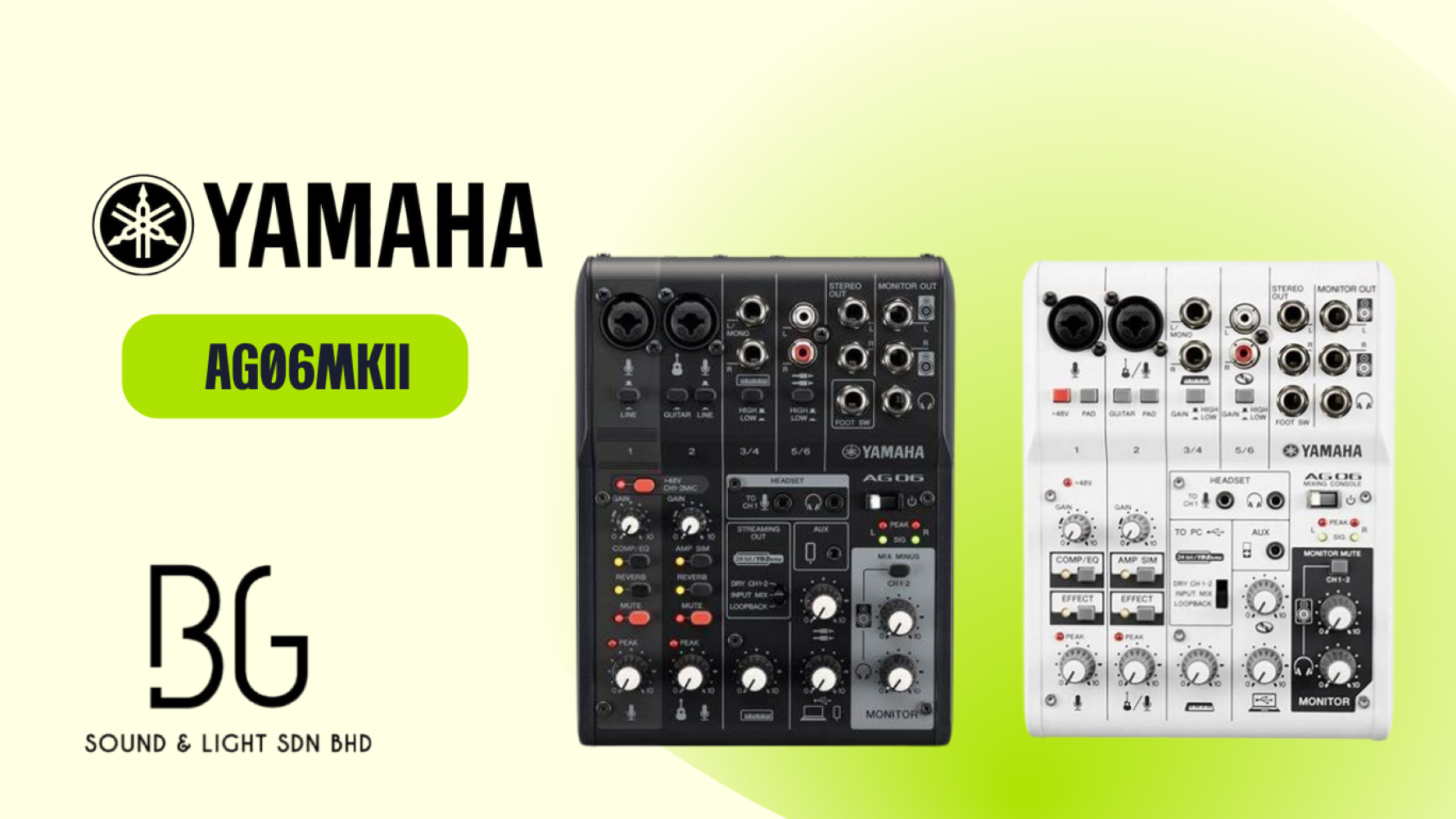

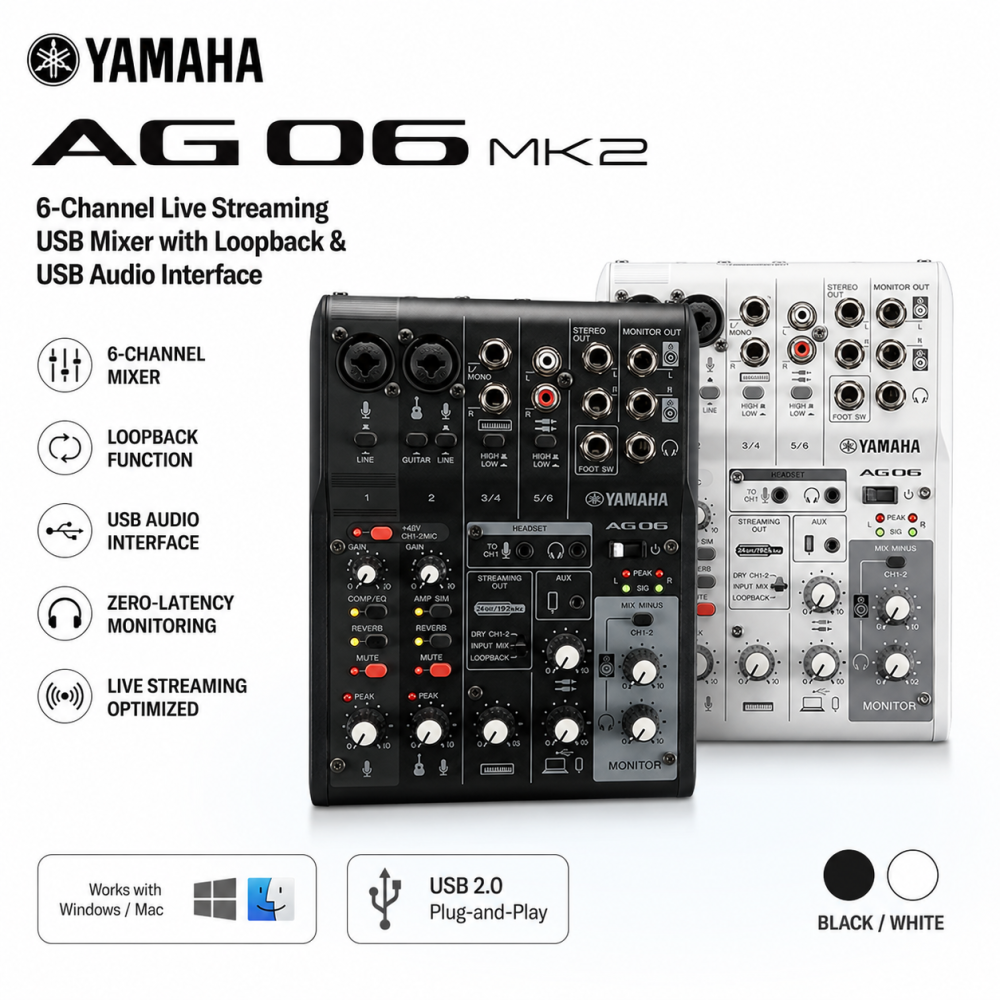

The Yamaha AG06MK2 is a versatile 6-channel live streaming USB mixer designed for creators, musicians, and podcasters. Featuring dual phantom-powered inputs, Hi-Z support for guitars, professional DSP effects, and USB-C connectivity, it delivers studio-quality sound with ease. With LOOPBACK function, mute control, and smartphone TRRS I/O, the AG06MK2 is ideal for streaming, recording, and online collaboration.

✅ Key Features (Bullet Points)

• 6-channel live streaming USB mixer with LOOPBACK function

• 2 mic/line inputs with +48V phantom power (supports condenser mics & DI boxes)

• Hi-Z input for guitars (CH2)

• Stereo line and RCA inputs for flexible sources

• Built-in DSP: COMP/EQ, REVERB (SPX), AMP SIM (via AG Controller)

• 24-bit/192 kHz high-resolution USB audio interface

• Mute button for convenient streaming control

• 4-pole TRRS I/O for smartphone streaming

• USB-C connectivity and power (5V DC, 900 mA)

• Compatible with Windows, Mac, iOS, and Android

• Bundled with Cubase AI & WaveLab Cast software

---

⚙️ Technical Specifications

Outline

• Input Channels

  • Mono [MIC/LINE]: 2 (CH1: Combo XLR/TRS + Headset mic, CH2: Combo XLR/TRS with Hi-Z)

  • Stereo [LINE]: 2 (Phone, RCA)

  • Smartphone: 1 (TRRS 4-pole mini)

  • USB: 1

• Output Channels

  • PHONES: 2 (Cannot be used simultaneously with headset phones)

  • Smartphone: 1 (TRRS 4-pole mini)

  • Monitor Out: 1 (Stereo)

  • Stereo Out: 1

  • USB: 1

• Bus: 1 Stereo

• Functions: MUTE button, PAD, HI-Z, STREAMING OUT modes (Dry/Loopback/Input Mix), Mix Minus Mic

• On-board processors (DSP): COMP/EQ, REVERB (SPX Reverb), AMP SIM (via AG Controller)

• USB

  • Audio: 2 IN / 2 OUT, Class 2.0 Compliant

  • Sampling Frequency: Max. 192 kHz

  • Bit Depth: 24-bit

  • Type-C

• Power: USB-C DC 5 V, 900 mA

• Consumption: Max. 4.5 W

• Dimensions: 152 × 63 × 201 mm (6.0" × 2.5" × 7.9")

• Net Weight: 0.9 kg (2.0 lbs)

• Accessories: USB 2.0 Cable (1.5 m), Quick Guide, Safety Guide, Cubase AI & WaveLab Cast download info

• Others: Operating temperature 0–40°C
