Details

---

🔹 Product Description

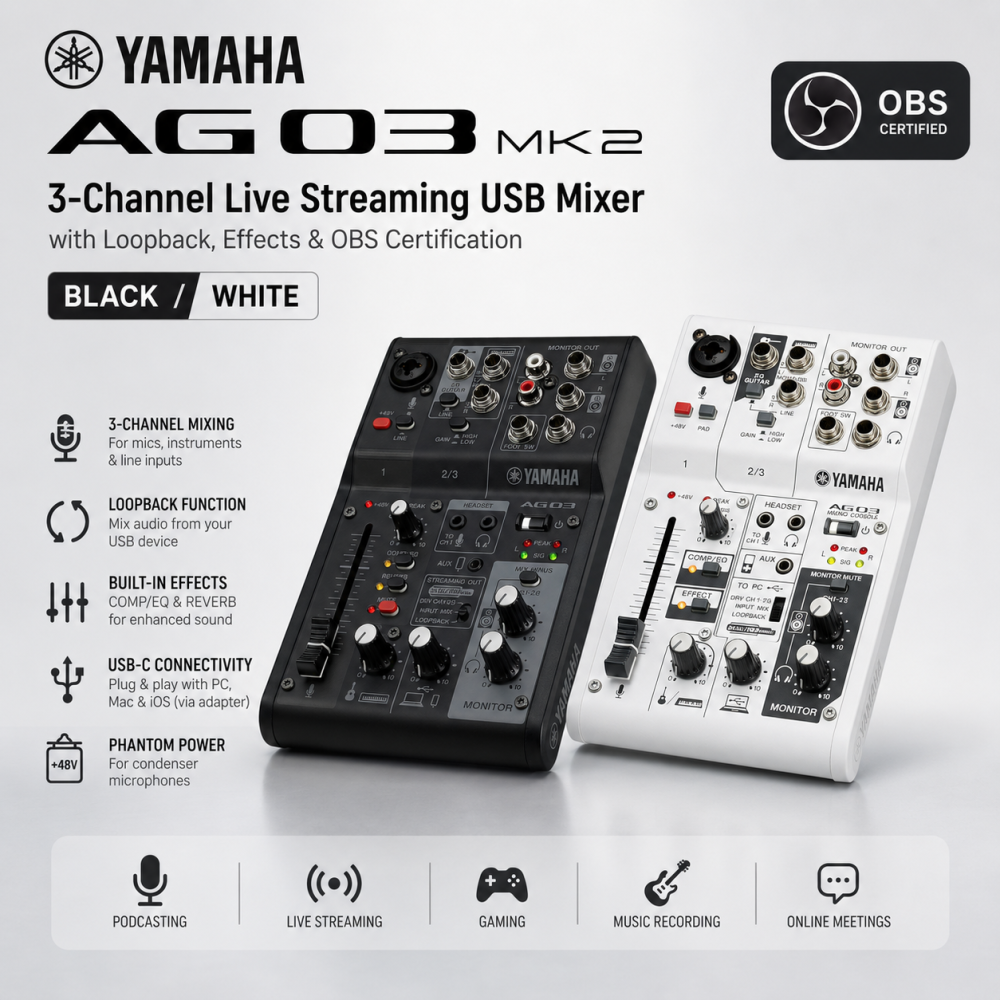

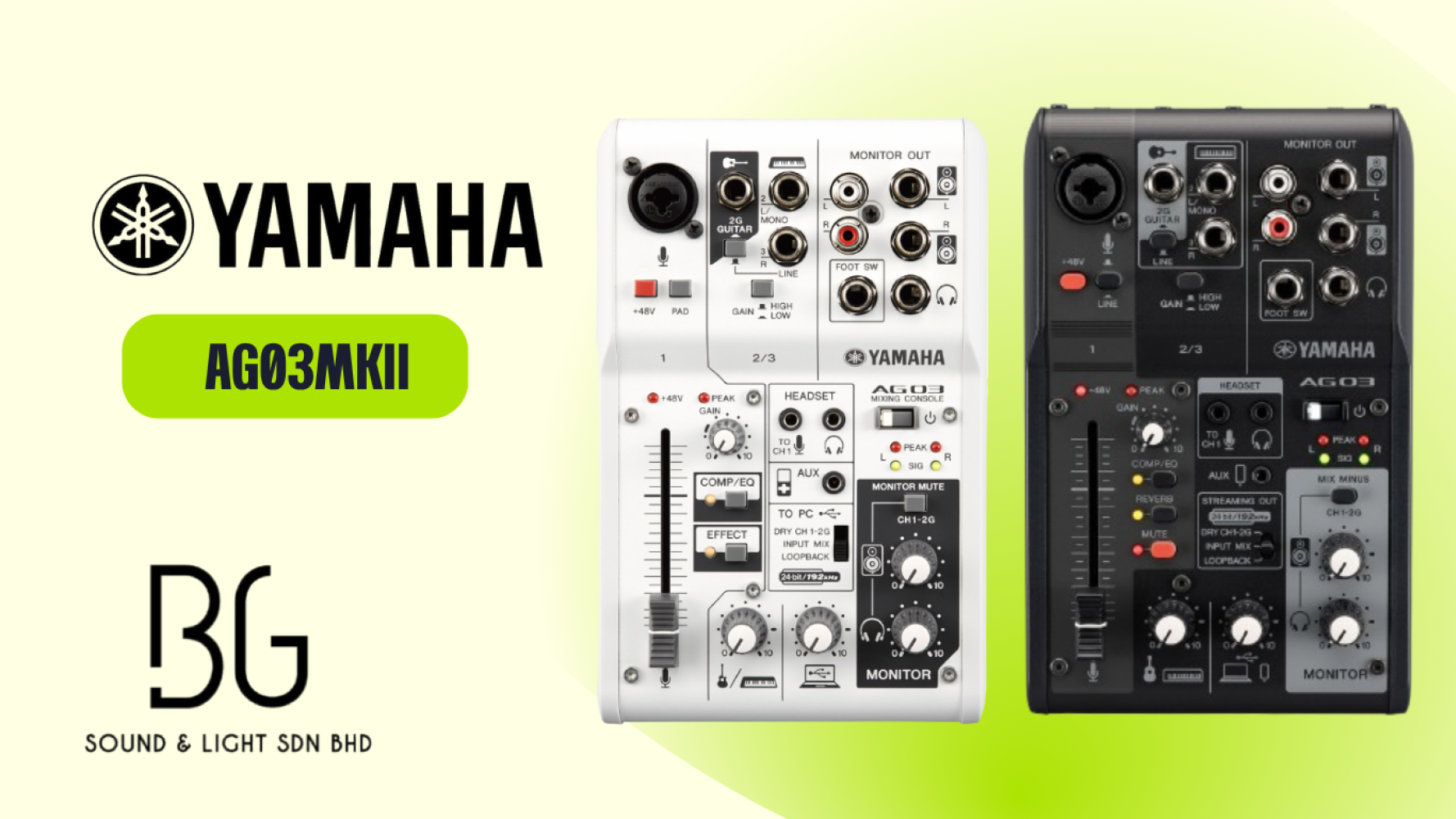

The Yamaha AG03MK2 is a compact and versatile 3-channel live streaming USB mixer, designed for streamers, musicians, podcasters, and content creators. Featuring professional-grade audio quality, USB-C connectivity, DSP effects, and flexible input/output options, it ensures a seamless streaming and recording experience. With support for OBS Studio certification, it is the ideal choice for high-quality live broadcasting on multiple platforms.

🔹 Key Features / Bullet Points

• 🎚️ 3-Channel USB Mixer with 60mm fader for mic control

• 🎤 +48V Phantom Power for condenser microphones (CH1)

• 🎸 Hi-Z Input for guitars or instruments (CH2)

• 🔄 Loopback Function – perfect for streaming & recording

• 🎧 Headset & Smartphone TRRS I/O for flexible streaming setups

• 🎛️ Built-in DSP Effects: COMP/EQ, Reverb, Amp Simulator

• 📱 USB-C & TRRS Connectivity for PC, Mac, iOS & Android

• ✅ OBS Certified – optimized for streaming platforms

• 🎼 Includes Cubase AI, WaveLab Cast, Cubasis LE, Rec’n’Share software

• ⚡ Compact, lightweight design – portable yet professional

🔹 Technical Specifications

Outline

• Input Channels:
  • 1 x Mono (Mic/Line Combo, +48V Phantom Power / Line), 3.5 mm stereo mini (Headset mic, plug-in power)
  • 1 x Stereo Line / Guitar Input (Mono)
  • 1 x Smartphone TRRS
  • 1 x USB

• Output Channels:
  • 1 x PHONES / Headset Phones (*cannot be used simultaneously)
  • 1 x Smartphone TRRS
  • 2 x Monitor Out (L/R Stereo: Phone, RCA)
  • 1 x USB

• Bus: 1 Stereo

• Functions: MUTE, PAD x2, HI-Z, Streaming Out (Dry / Input Mix / Loopback), Mix Minus Mic ON/OFF

• On-board DSP: COMP/EQ, REVERB (SPX), AMP SIM (via AG Controller)

• USB Audio: 2 IN / 2 OUT, Class 2.0 Compliant, up to 192kHz / 24-bit, Type-C

• Power: 5V DC, 900 mA

• Power Consumption: Max. 4.5 W

• Dimensions (W x H x D): 126 × 63 × 201 mm (5.0" × 2.5" × 7.9")

• Net Weight: 0.8 kg (1.8 lbs)

• Included Accessories: USB 2.0 Cable (1.5 m), Quick Guide, Safety Guide, WaveLab Cast & Cubase AI download info

• Operating Temperature: 0 – 40 °C
