🔊 Product Description

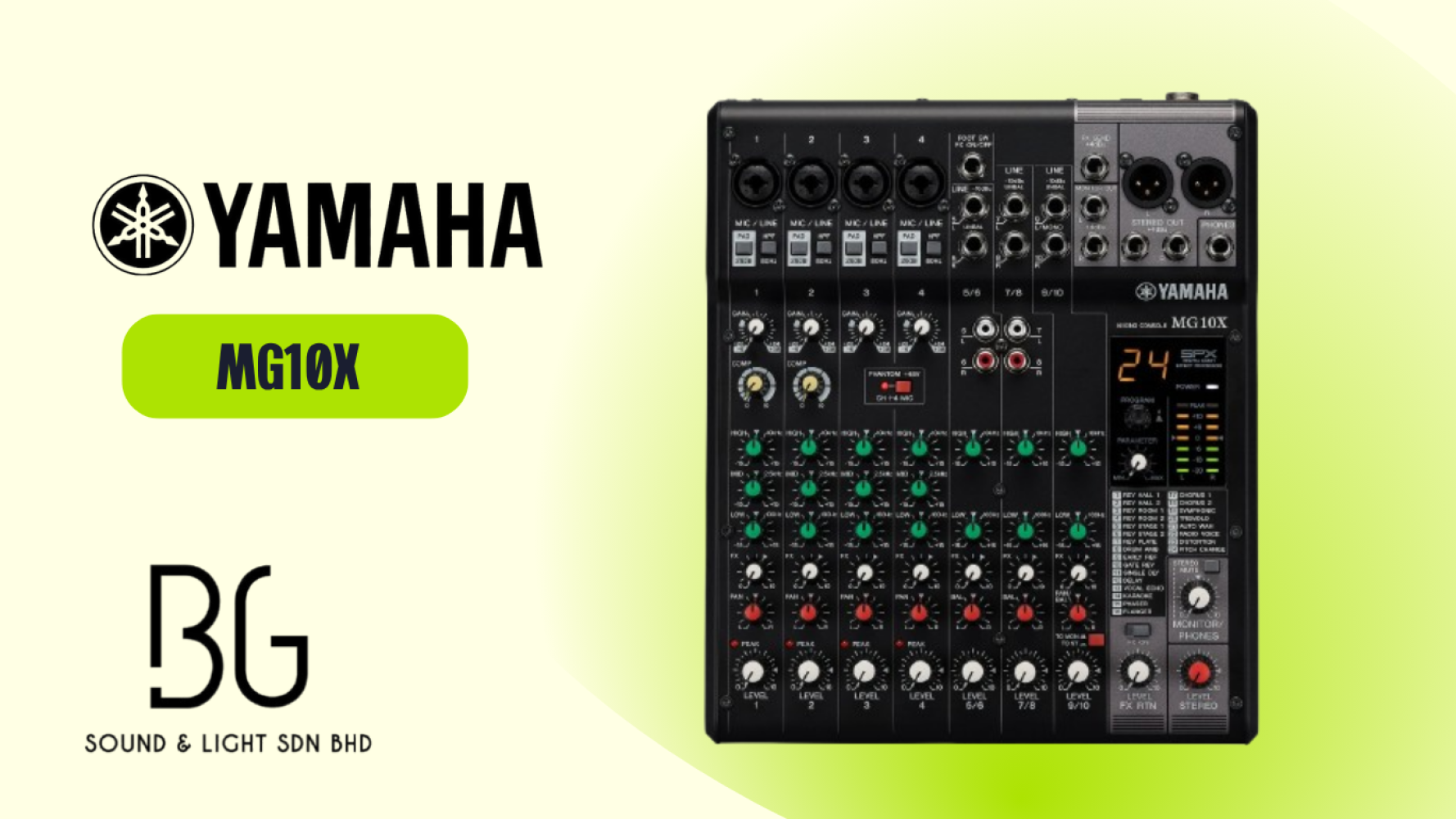

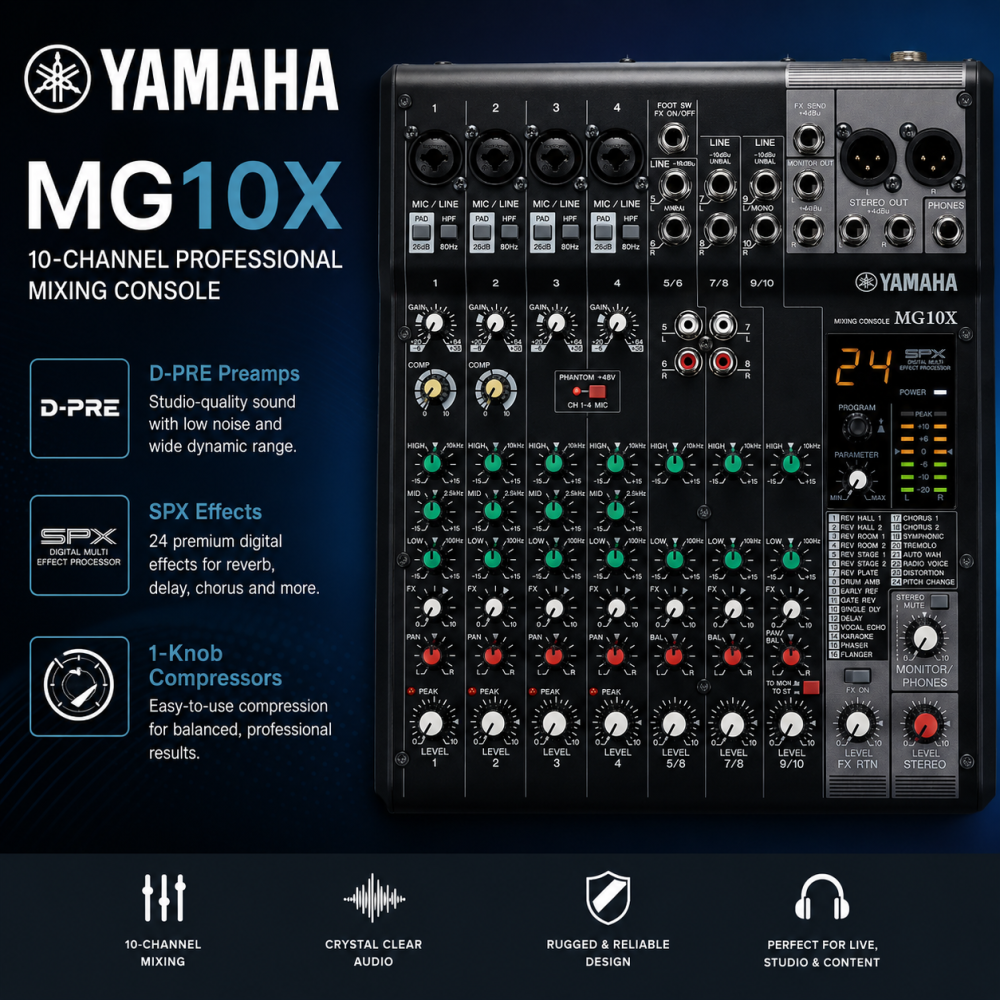

The Yamaha MG10X is a compact 10-channel professional mixing console designed for small live sound, recording, and installation applications. Featuring Yamaha’s acclaimed D-PRE mic preamps, SPX digital effects with 24 programs, and 1-knob compressors, the MG10X delivers warm, transparent sound and flexible mixing capabilities. Built with a rugged metal chassis and compact form factor, it offers both durability and portability for musicians, sound engineers, and audio professionals.

---

✅ Key Features / Bullet Points

• 10-Channel Professional Mixing Console (4 Mic / 10 Line inputs)

• D-PRE mic preamps with inverted Darlington circuit for natural sound

• SPX Digital Effects: 24 professional-grade programs with parameter control

• 1-Knob compressors for easy dynamics adjustment

• PAD switch on mono inputs

• +48V Phantom Power for condenser microphones

• Stereo, Monitor, Phones, and AUX outputs

• Compact, lightweight metal chassis for portable use

• Dimensions: 244 × 71 × 294 mm | Weight: 2.1 kg

---

⚙️ Technical Specifications

Mixing Capability

• On-board processors: SPX algorithm, 24 programs, parameter control, footswitch support

Input Channels

• Mono [Mic/Line]: 4

• Stereo [Line]: 3

Output Channels

• Stereo Out: 2

• Monitor Out: 1

• Phones: 1

• AUX Send: 1

• Group Out: –

Bus

• Stereo: 1, AUX (FX): 1

Channel Functions

• PAD: 26 dB (Mono)

• HPF: 80 Hz, 12 dB/oct (Mono)

• COMP: 1-Knob compressor (Threshold +22 dBu to -8 dBu, Ratio 1:1–4:1, Output 0–7 dB, Attack 25 ms, Release 300 ms)

• EQ: High (10 kHz), Mid (2.5 kHz), Low (100 Hz), ±15 dB

• PEAK LED indicator

• Level Meter: 2 × 7-segment LED meter

Performance Specs

• Total Harmonic Distortion: 0.02% @ +14 dBu (20 Hz–20 kHz), 0.003% @ +24 dBu (1 kHz)

• Frequency Response: 20 Hz–48 kHz (+0.5/-1.0 dB)

• Equivalent Input Noise: -128 dBu

• Residual Output Noise: -102 dBu

• Crosstalk: -83 dB

General

• Power Requirements: PA-10 adaptor (AC 38 VCT, 0.62A)

• Power Consumption: 22.9 W

• Dimensions (W×H×D): 244 × 71 × 294 mm

• Net Weight: 2.1 kg

• Accessories: AC Adaptor, Owner’s Manual, Technical Specs (Optional: Mic Stand Adaptor BMS-10A, Footswitch FC5)

• Operating Temperature: 0–40°C
