🔊 Product Description

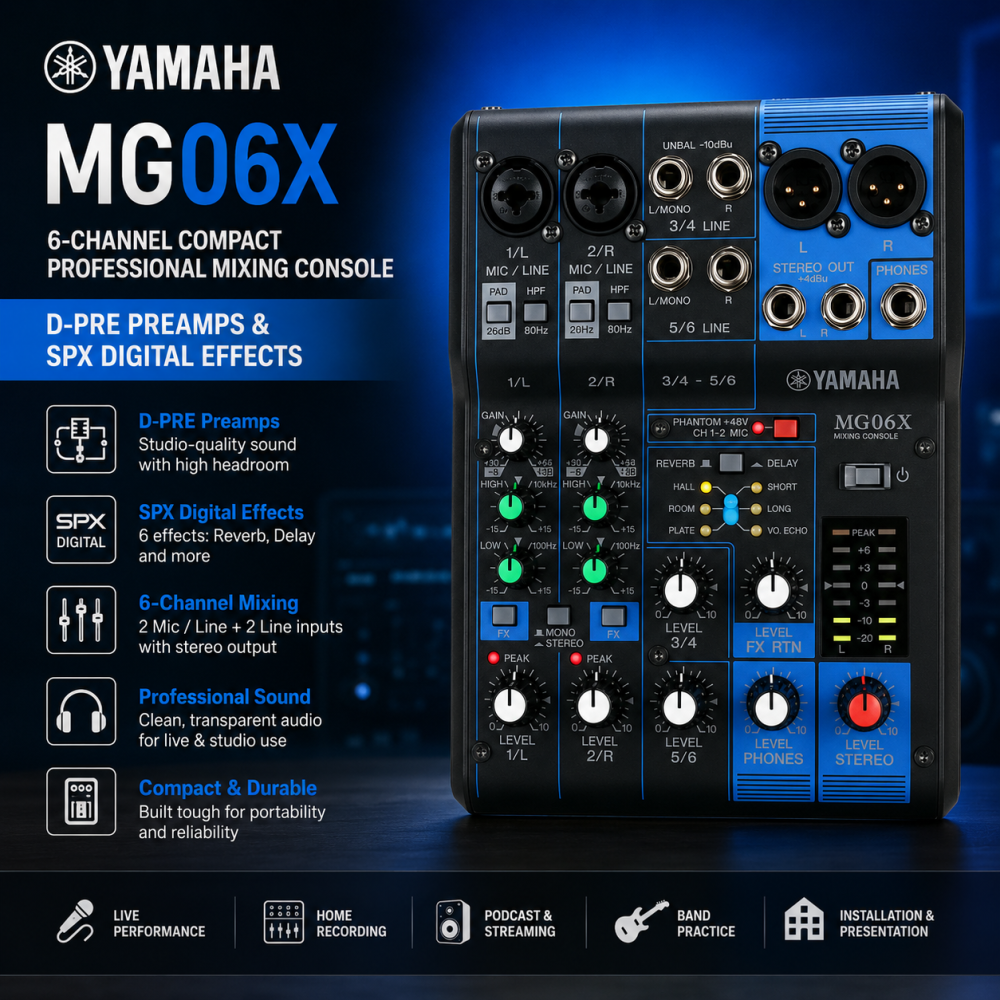

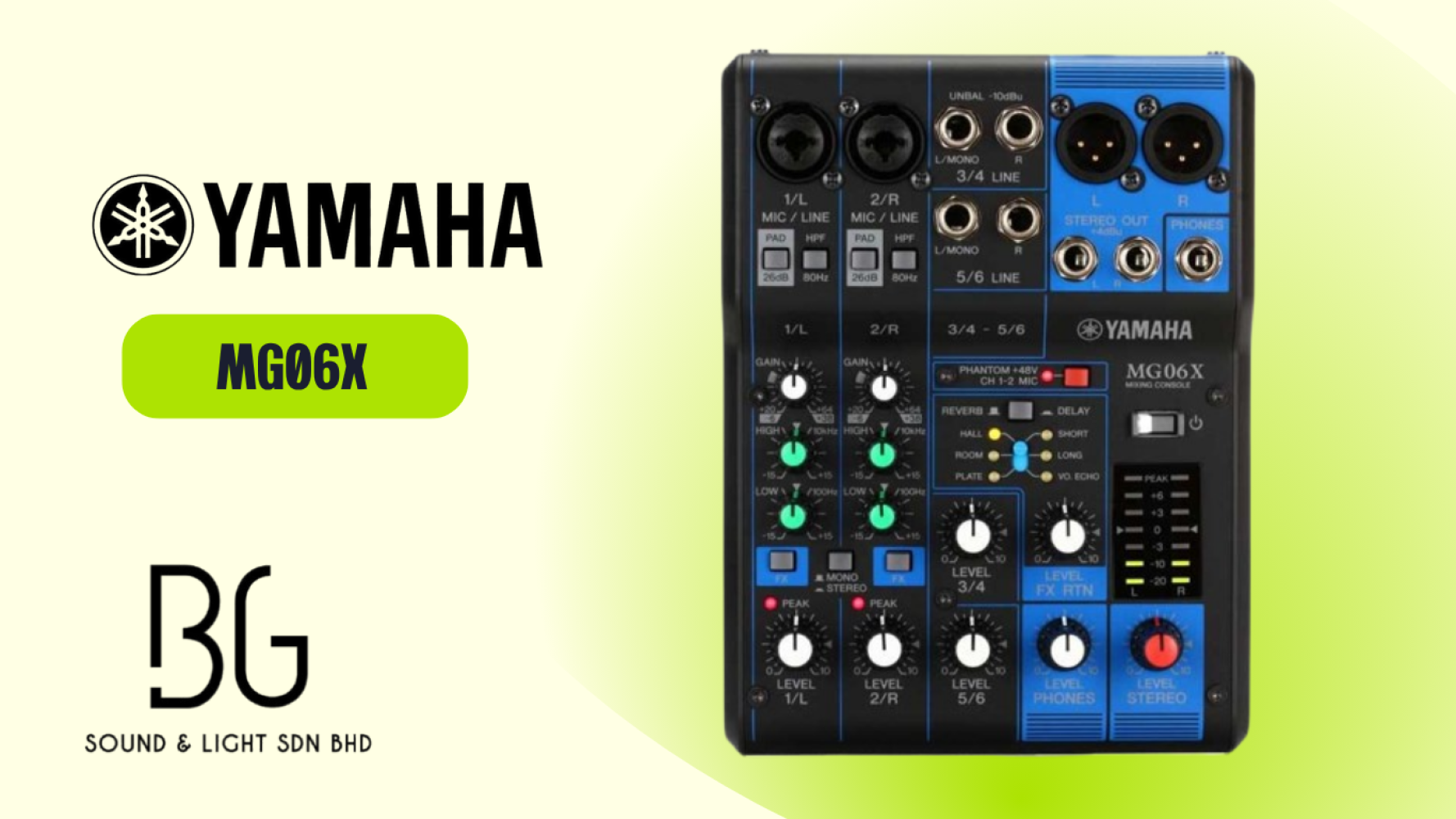

The Yamaha MG06X is a compact 6-channel professional mixing console ideal for small performances, home studios, and installation setups. It features two D-PRE mic preamps, SPX digital effects with 6 programs, and delivers warm, natural sound in a rugged and portable metal chassis. With +48V phantom power, balanced XLR outputs, and intuitive operation, the MG06X provides high-quality mixing performance in an ultra-compact design weighing under 1 kg.

---

✅ Key Features / Bullet Points

• 6-Channel Compact Mixing Console (2 Mic / 6 Line inputs)

• D-PRE mic preamps with inverted Darlington circuit

• SPX Digital Effects: 6 programs (Reverb, Delay, etc.)

• PAD switch on mono inputs

• +48V Phantom Power for condenser microphones

• Balanced XLR outputs

• Rugged metal chassis for durability

• Lightweight and portable (0.9 kg only)

• Dimensions: 149 × 62 × 202 mm

---

⚙️ Technical Specifications

Mixing Capability

• On-board processors: SPX algorithm, 6 programs

Input Channels

• Mono [Mic/Line]: 2

• Stereo [Line]: 2

Output Channels

• Stereo Out: 2

• Phones: 1

Bus

• Stereo: 1

Channel Functions

• PAD: 26 dB (Mono)

• HPF: 80 Hz, 12 dB/oct (Mono)

• EQ: High (10 kHz), Low (100 Hz), ±15 dB (Mono channels only)

• PEAK LED indicator

• Level Meter: 2 × 7-segment LED meter

Performance Specs

• Total Harmonic Distortion: 0.01% @ +8 dBu (20 Hz–20 kHz), 0.003% @ +18 dBu (1 kHz)

• Frequency Response: 20 Hz–20 kHz (+0.5/-0.5 dB)

• Equivalent Input Noise: -128 dBu

• Residual Output Noise: -102 dBu

• Crosstalk: -88 dB

General

• Power Requirements: PA-130 (DC12 V, 1.0 A) / MU18 (DC12 V, 1.5 A), 100–240 V, 50/60 Hz

• Power Consumption: 12 W

• Dimensions (W×H×D): 149 × 62 × 202 mm

• Net Weight: 0.9 kg

• Accessories: AC Adaptor, Owner’s Manual, Technical Specifications (Optional: Mic Stand Adaptor BMS-10A)

• Operating Temperature: 0–40°C
