Details

---

🔊 Product Description:

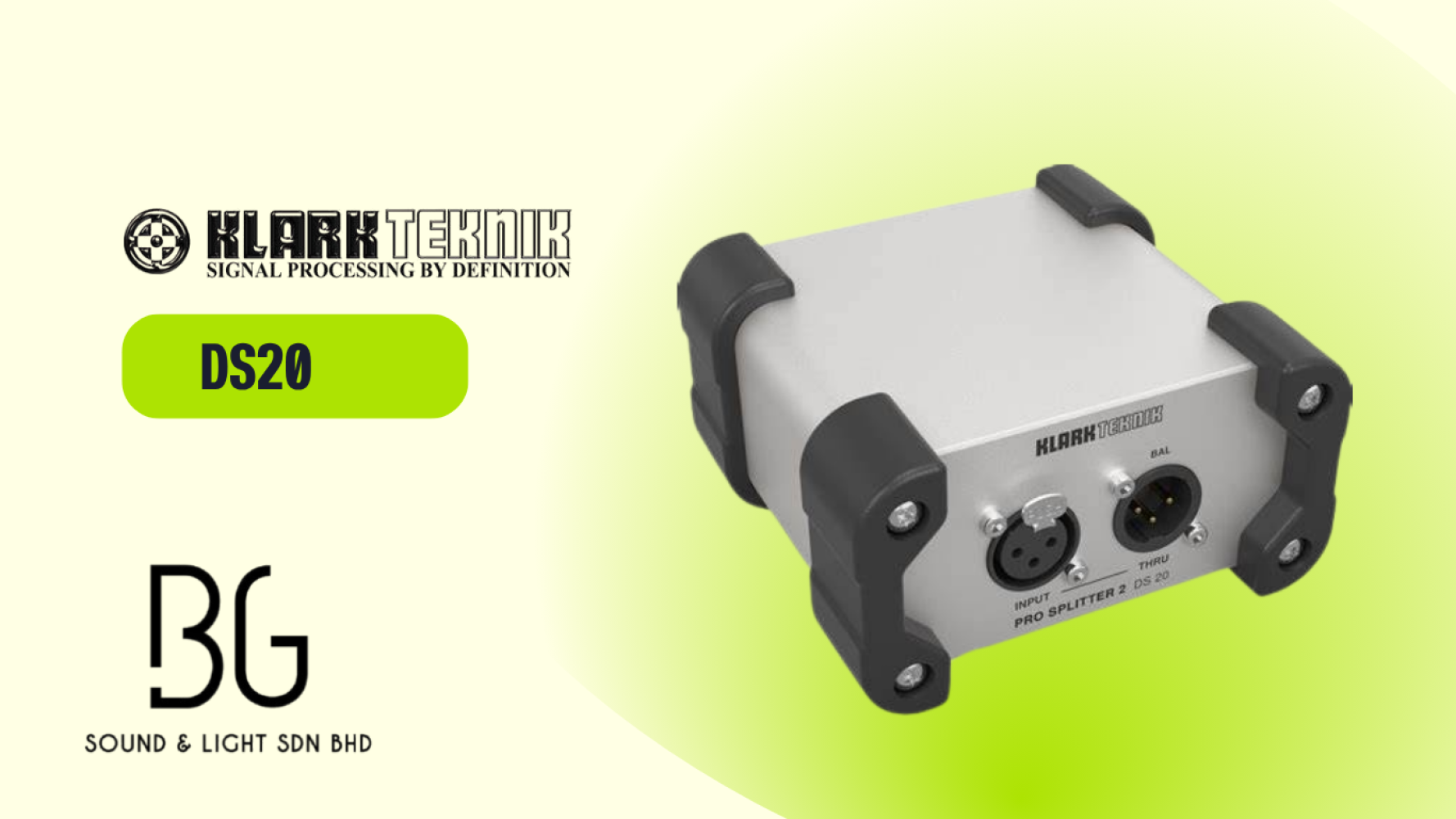

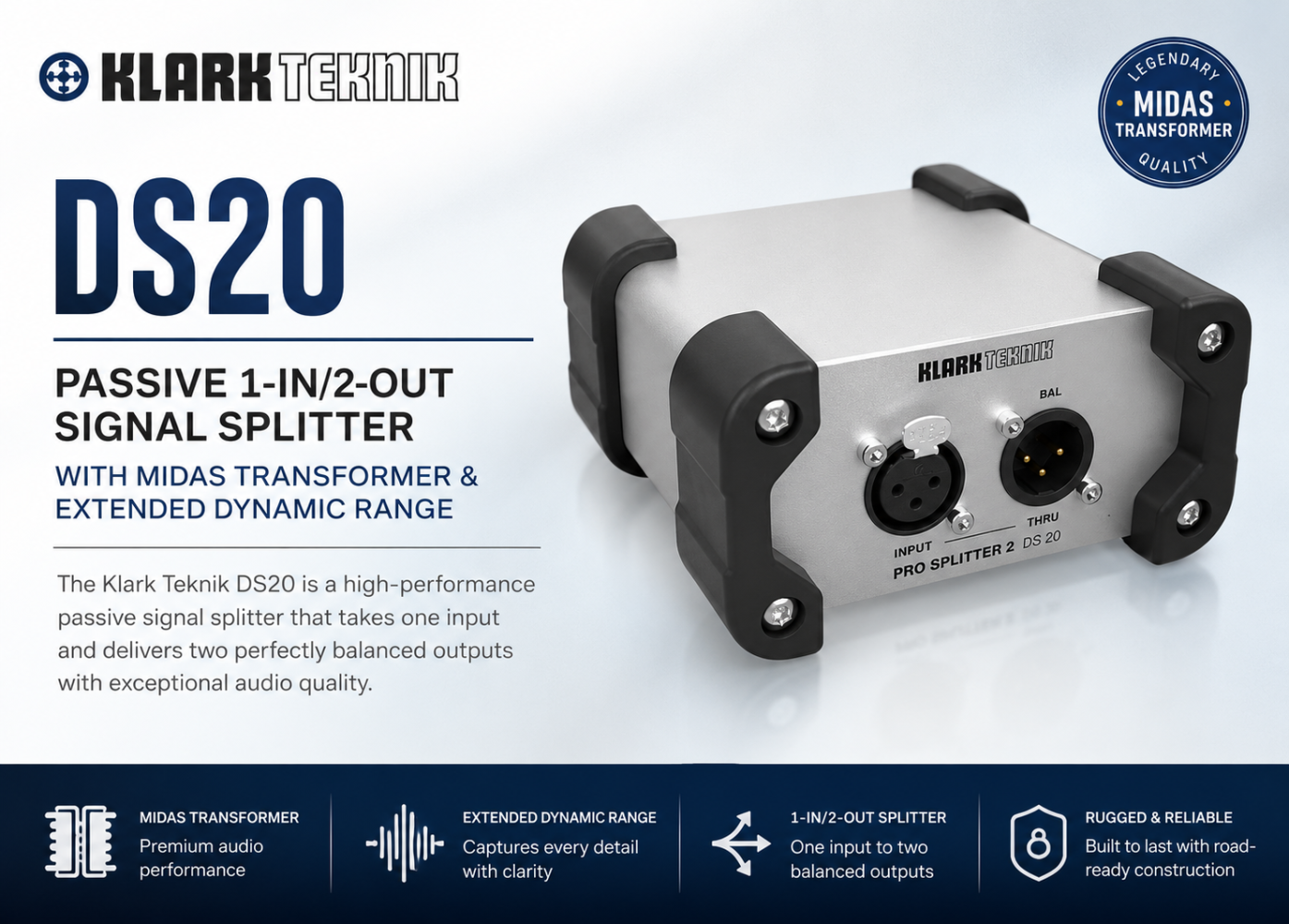

The Klark Teknik DS20 is a professional passive 1-in/2-out signal splitter featuring a premium Midas transformer for exceptional audio fidelity. Designed for live sound, studio, and installation applications, it allows a single audio source to be split into two isolated outputs without compromising sound quality. With extended dynamic range and ultra-low distortion, the DS20 ensures transparent signal distribution. Its rugged, road-ready construction makes it a reliable choice for demanding environments.

✅ Key Features / Bullet Points:

• Passive 1-input / 2-output signal splitter with Midas transformer

• Extended dynamic range for pristine audio performance

• Fully isolated outputs to prevent ground loops and interference

• Rugged all-metal housing for durability in touring and installation use

• No power required – completely passive design

• Balanced XLR connectors for professional-grade connections

• Ideal for distributing signals to multiple mixers, processors, or recording devices

⚙️ Basic Specifications:

• Type: Passive Signal Splitter (1-in / 2-out)

• Transformer: Midas custom

• Frequency Response: 10 Hz – 90 kHz (+0/-1 dB)

• Dynamic Range: > 130 dB

• Input: Balanced XLR (female)

• Outputs: 2 × Balanced XLR (male)

• Ground Lift: Yes

• Power: None required (passive)

• Dimensions (W × D × H): 130 × 110 × 60 mm

• Weight: 0.7 kg

📦 Packing Size & Weight:

• Box Dimensions: 150 × 130 × 80 mm

• Gross Weight: 0.9 kg
