Details

---

🔹 Product Introduction

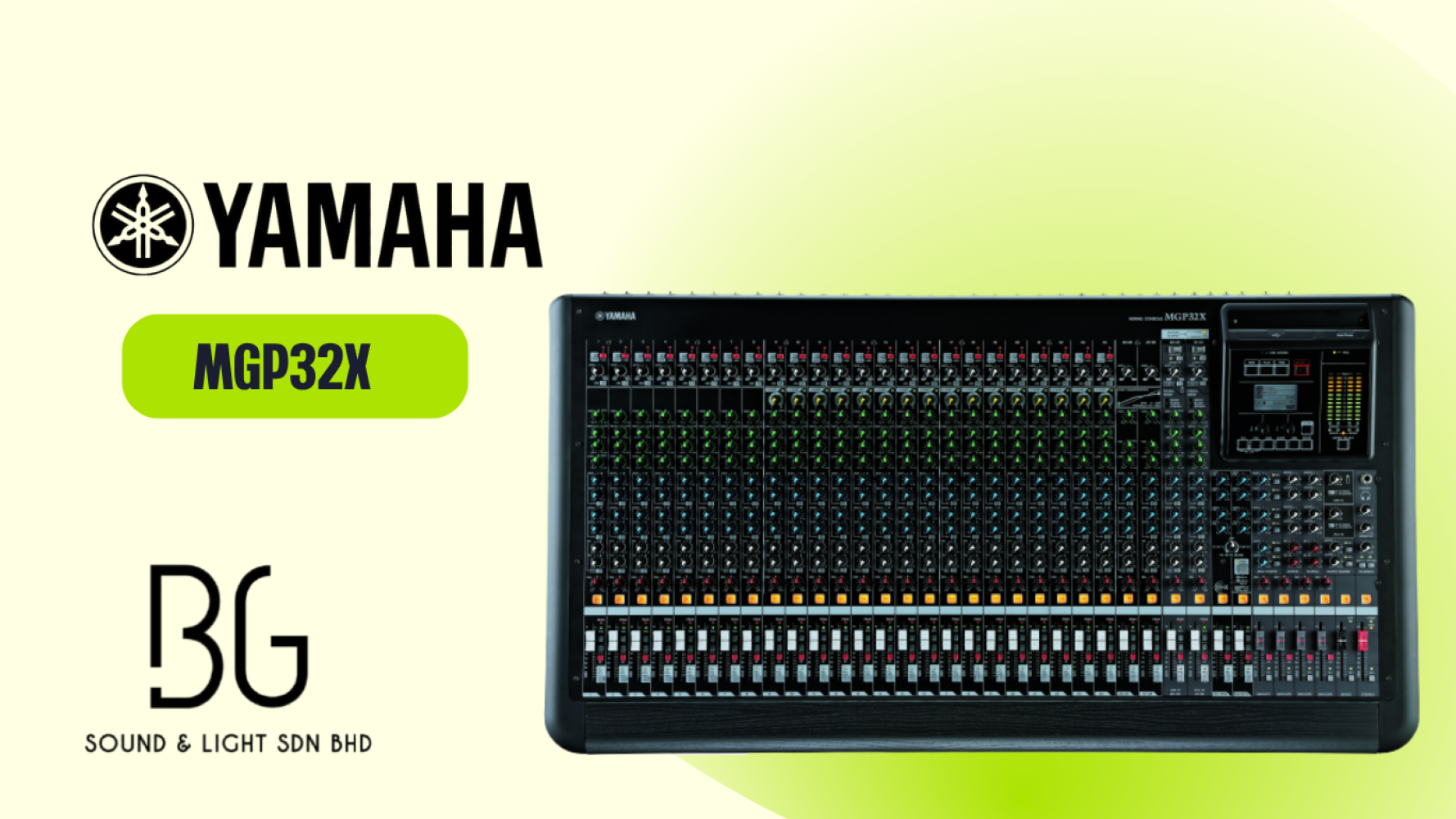

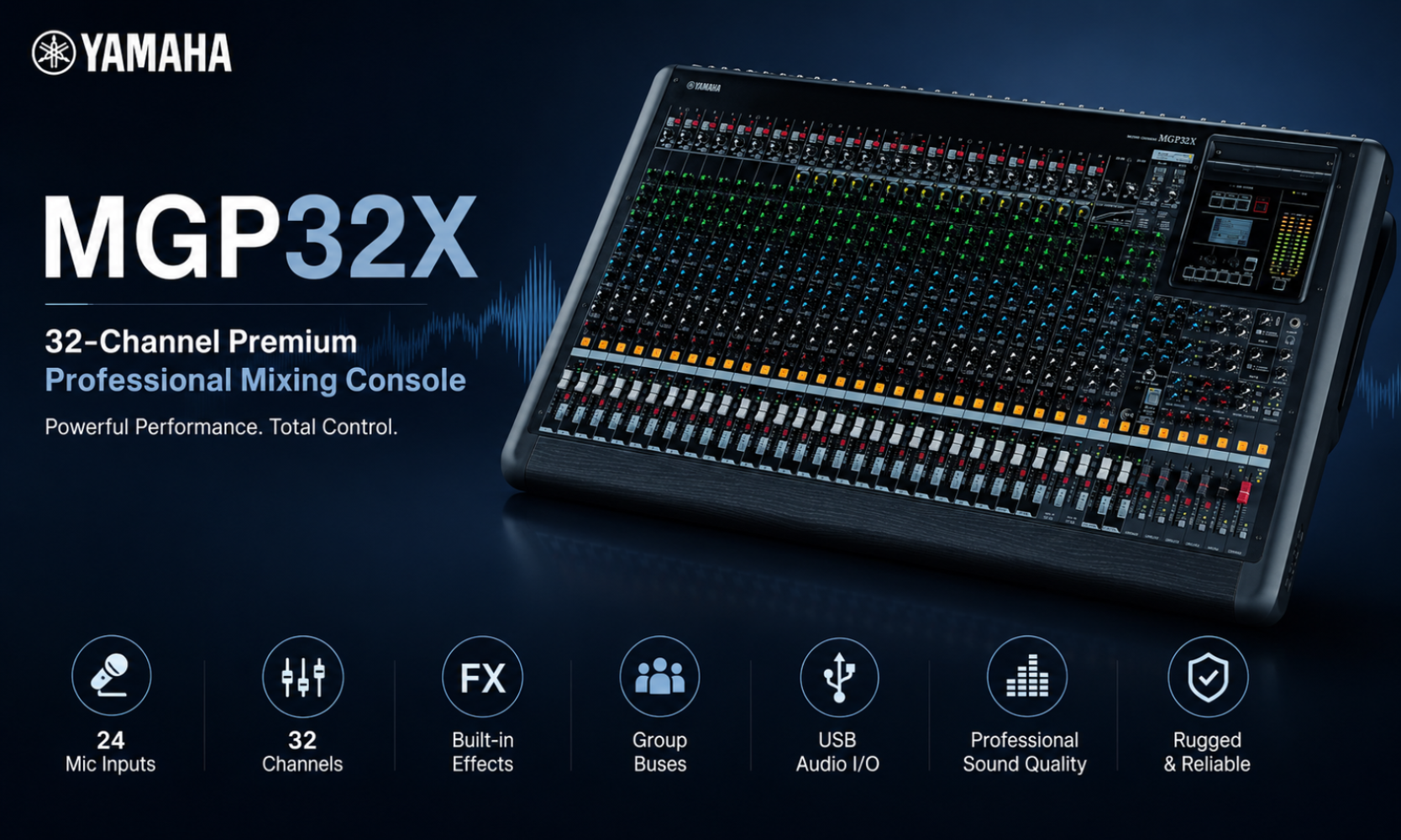

The Yamaha MGP32X is a 32-channel premium mixing console designed for professional live sound and installation. With 24 high-quality microphone inputs, powerful dual effects processors, flexible AUX and matrix routing, and robust build quality, it is the perfect choice for concerts, houses of worship, theaters, and event halls requiring uncompromised audio performance.

🔹 Key Features (Bullet Points)

• 32-channel premium mixing capability (24 mono + 4 stereo inputs)

• 24 Mic inputs with +48V phantom power and high-pass filters

• 6 AUX sends + 2 FX sends for versatile routing

• Dual effects engines: REV-X (8 programs) & SPX (16 programs)

• 4 Group buses + Stereo bus, 2 Matrix outs, 1 Mono out

• USB device connection with iPod/iPhone integration

• Rugged metal chassis with professional-grade I/O

• Ideal for large-scale live events and installations

🔹 Basic Specifications

• Mixing Channels: 32 (24 mono + 4 stereo)

• Group Buses: 4 + Stereo Bus

• AUX Sends: 6 AUX + 2 FX

• Matrix Out: 2

• Mic Inputs: 24 with HPF (100Hz, 12dB/oct)

• Phantom Power: +48V per channel

• Effects Processors: REV-X (8 programs), SPX (16 programs)

• Digital I/O: USB Device, iPod/iPhone connection

• Frequency Response: 20Hz–20kHz (+0.5/-1.0dB)

• THD: 0.02% (20Hz–20kHz @ +14dBu)

• Noise Level: EIN -128 dBu / Residual Noise -92 dBu

• Power Consumption: 86W max

• Dimensions (W×H×D): 1,027 × 169 × 565 mm

• Net Weight: 19 kg
