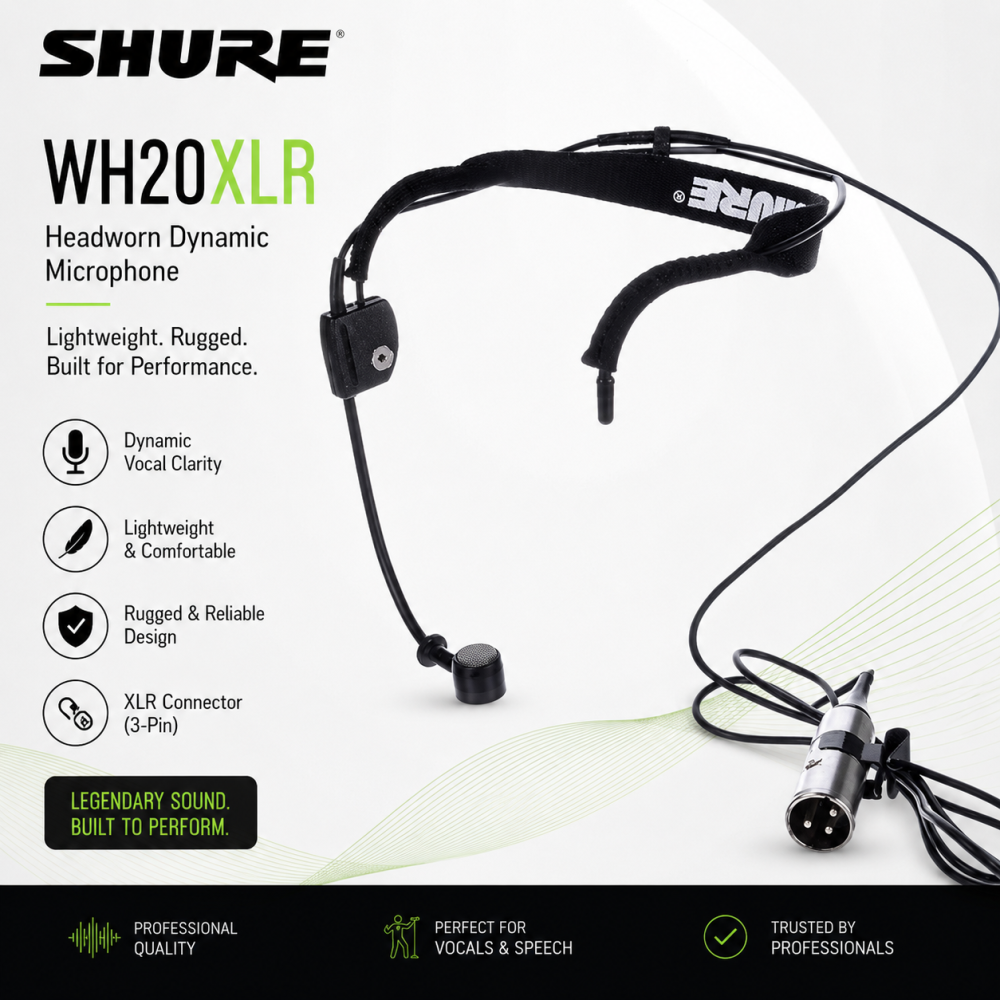

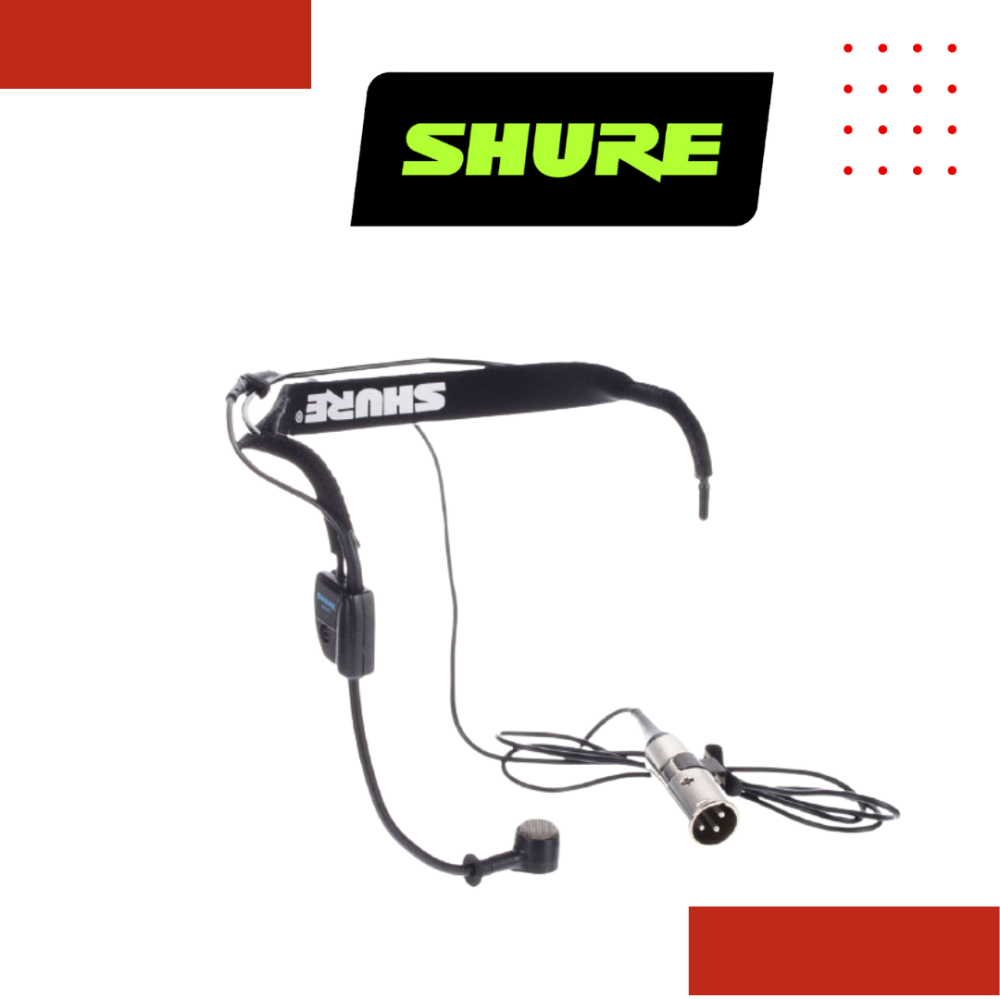

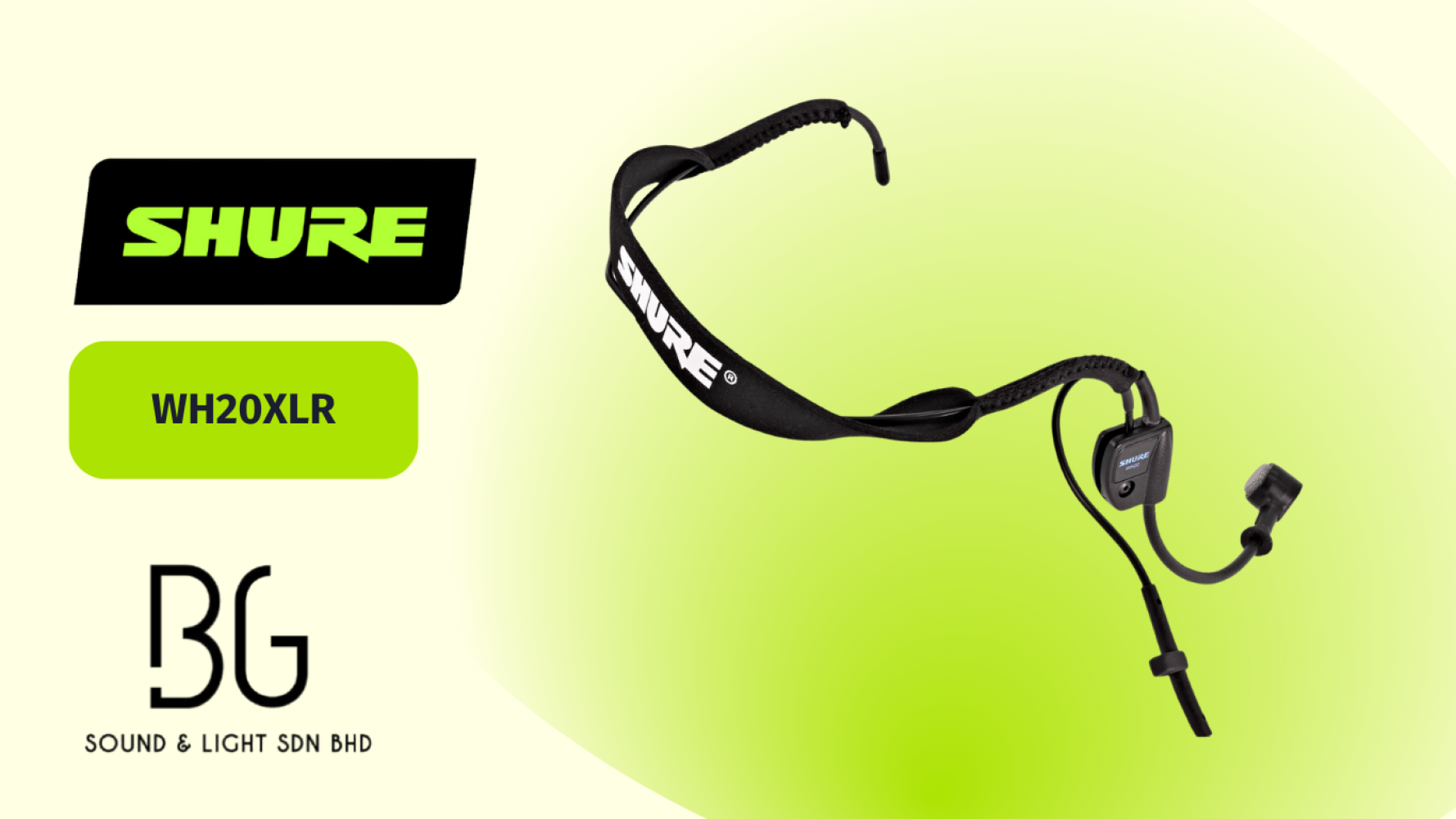

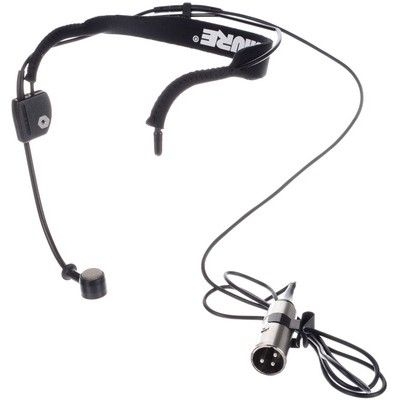

Shure WH20XLR Headworn Dynamic Microphone – Lightweight Rugged Vocal Headset Mic with XLR Connector



The Shure WH20XLR is a rugged, lightweight dynamic headset microphone designed for high-quality voice pickup with maximum comfort and durability. Featuring a low-profile wireframe and elastic headband, it stays secure even during active performances, making it ideal for aerobics instructors, musicians, presenters, and stage performers.

The cardioid pickup pattern provides excellent gain-before-feedback and effective rejection of background noise, while the smooth, natural frequency response is comparable to handheld vocal microphones. Built to withstand temperature and humidity extremes, the WH20XLR is engineered for professional reliability



Key Features

• Lightweight, low-visibility design ideal for stage and fitness applications

• Dynamic cardioid microphone with clear, natural vocal response

• Wireframe & elastic headband ensure secure and comfortable fit

• Collapsible boom arm for convenient storage and transport

• Extra-strong small-diameter cable resists breakage

• Foam windscreen & clothing clip included for performance stability

• High input clipping level prevents distortion in loud environments

• Reliable durability for use in extreme conditions

• XLR output connector for direct professional audio integration



  Technical Specifications

• Weight: 63 g (0.139 lbs)

• Transducer Type: Dynamic

• Polar Pattern: Cardioid (Unidirectional)

• Frequency Response: 50 Hz – 15 kHz (natural vocal presence peak)

• Sensitivity: –67 dBV/Pa (0.45 mV/Pa)

• Impedance: 150 Ω

• Switchable Low Cut: No

• Attenuation Pad: No

• Interchangeable Capsule: No

• Output Connectors: 3-pin XLR (WH20XLR), 6.3 mm (WH20QTR), TA4F Mini 4-pin (WH20TQG)

• Headband: Elastic with lightweight wireframe

• Boom Arm: Collapsible, adjustable positioning



  Accessories & Replacement Parts

• RK318WS Black Windscreens (2) + Clothing Clip

• RK200BC Connector Belt Clip

• RK319 Black Elastic Headband

• RPM600 Headband & Wireframe Assembly

• RPM100 Mic + Cable + 1/4" Connector Assembly (WH20QTR)

• RPM102 Mic + Cable + TA4F Mini Connector Assembly (WH20TQG)

• RPM104 Mic + Cable + XLR Connector Assembly (WH20XLR)
