Behringer XENYX QX1222USB 12‑Channel USB Mixer with XENYX Preamps & Effects
Specifications
Details
Product description

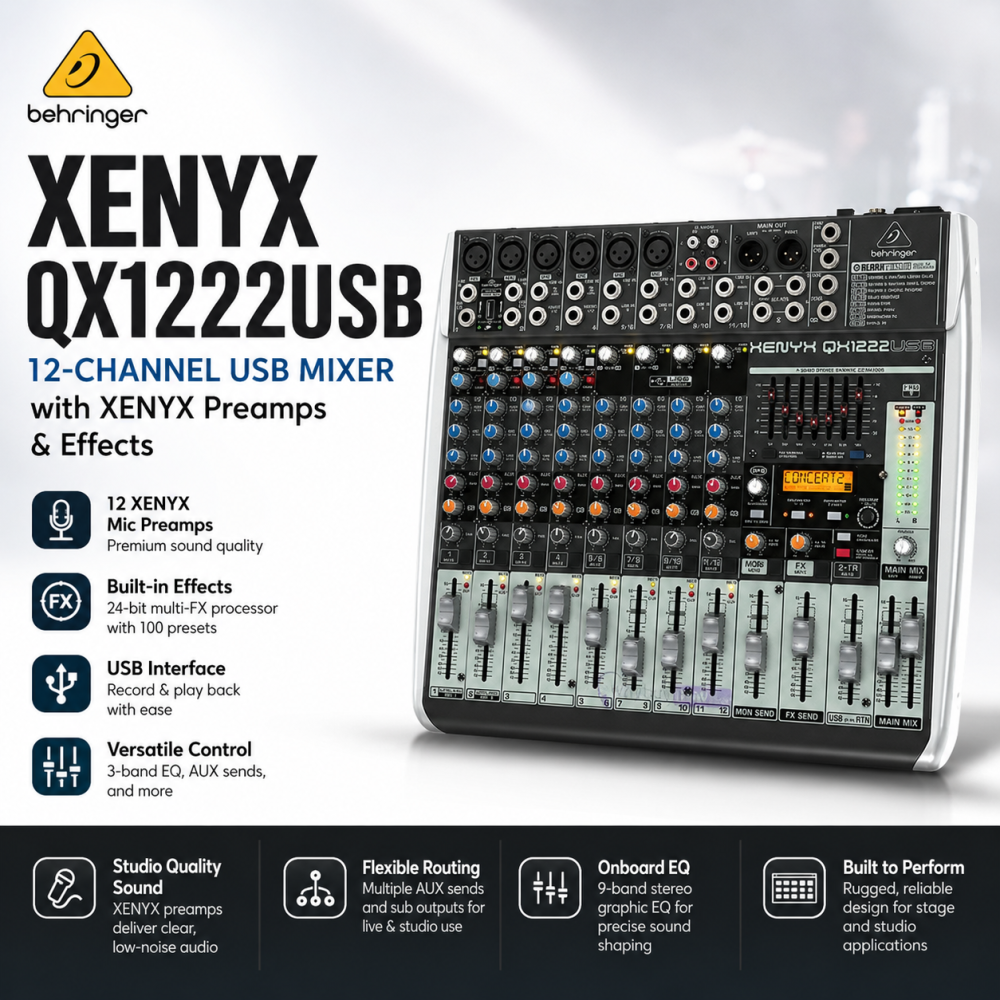

The Behringer XENYX QX1222USB is a compact 12‑channel analogue mixer with a built‑in USB audio interface. It provides six mic/line channels with ultra‑low‑noise XENYX mic preamps, 48 V phantom power and one‑knob compressors for controlling dynamics. Four stereo line channels accommodate keyboards or playback devices. Each channel includes a British‑style 3‑band EQ and high‑pass filter. A Klark Teknik multi‑effects processor delivers studio‑grade reverb, chorus, delay and more, while a 7‑band master graphic EQ allows fine‑tuning of the main or monitor mix. Two aux sends (one pre‑fader, one post‑fader) support monitor mixes and effects. The mixer’s USB‑B interface lets you record and play back two channels to/from a computer, and XLR main outputs provide balanced connection to PA systems. Despite its capabilities, the QX1222USB remains portable, weighing about 3.8 kg and measuring 90 × 370 × 330 mm
Key features
-
12‑channel, 2‑bus mixer with 6 mic inputs and 4 stereo inputs
-
Ultra‑low‑noise XENYX mic preamps with 48 V phantom power; one‑knob compressors on mic channels
-
3‑band British EQ and 75 Hz high‑pass filter on each mono channel
-
Built‑in Klark Teknik 24‑bit effects processor with ~100 presets
-
7‑band stereo graphic EQ on master bus for precise tone shaping
-
Dual aux sends (1 pre‑fader monitor, 1 post‑fader FX) and control‑room/headphone outputs
-
USB‑B audio interface for 2‑channel recording/playback to PC/Mac
-
Optional wireless module slot for Behringer ULM digital microphones (not included)
-
Balanced XLR main outputs and insert points on mic channels
-
60 mm channel faders; durable metal chassis
Basic specifications
| Parameter | Specification |
|---|---|
| Total channels | 12 (6 mono mic/line + 4 stereo line) |
| Mic inputs | 6 XLR/TRS with phantom power |
| Stereo inputs | 4 pairs of TRS (line level) |
| Aux sends | 2 (1 pre‑fader, 1 FX) |
| Effects processor | 24‑bit Klark Teknik with ~100 presets; footswitchable bypass |
| Master EQ | 7‑band stereo graphic EQ |
| USB interface | USB‑B, 2 in / 2 out |
| Dimensions (H × W × D) | ~90 × 370 × 330 mm |
| Weight | ~3.8 kg |
| Power | Internal PSU, 100–240 V AC |
